cppTPSA/pyTPSA - C++ & Python TPSA Lib
About this code
This code allows users to do computations using Truncated Power Series Algebra (TPSA) and/or Differential Algebra (DA) in C++ and Python 3.x environment.
For TPSA and DA, please refer to chapter 8 in Lecture Notes on Special Topics in Accelerator Physics by Prof. Alex Chao and chapter 2 in Modern Map Methods in Particle Beam Physics by Prof. Martin Berz.
This code is developed based on Dr. Lingyun Yang’s tpsa codes in C++ . His codes (tpsa.cpp and tpsa.h) are included in this repository. They are untouched, except for a few functions that are commented off and replaced by functions in tpsa_extend.cc.

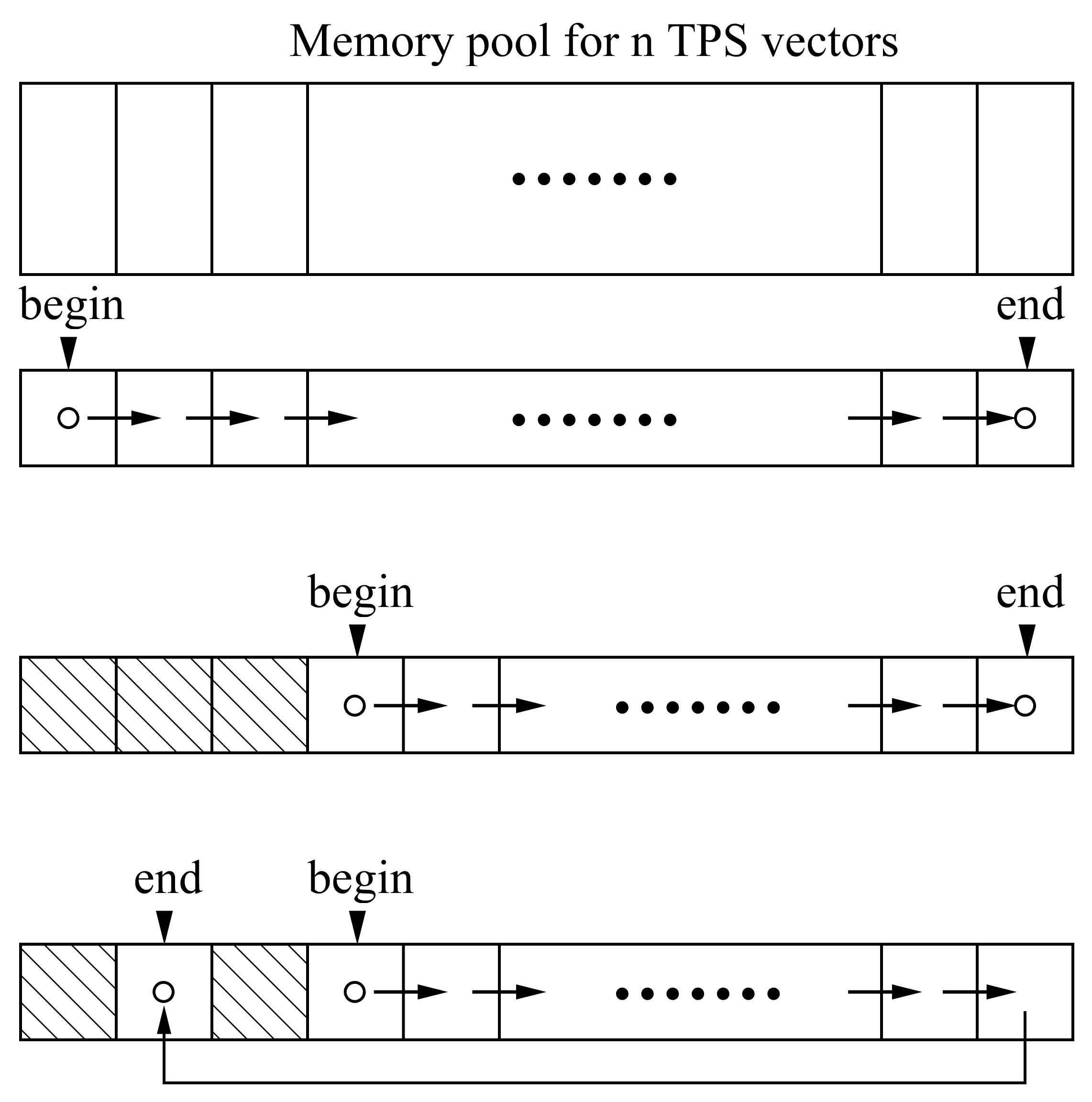

The major change is the memory management. The current memory management works in the following way. Before any TPSA/DA calculation, one needs to reserve the memory for $n$ TPS vector. A memory pool is allocated in the heap, which can be considered as $n$ slots, each for one TPS vector. A linked list is created to reference the available (unused) slots. Two pointers point to the beginning and the end of the linked list respectively. When a new TPS vector is created, the first slot will be assigned to it and the beginning pointer points to the following slot in the linked list. When a TPS vector goes out of its scope, the slot will be reset to empty and liked to the end of the list. The end pointer will be updated and point to the new end.
A new data type DAVector is created as a wrapper of the TPS vector. The following mathematical operator and functions are overloaded for DAVector, so that a variable of DAVector type can be used as a intrinsic type in calculations.
Math operator overloaded: (DA - DA vector, CD - complex DA vector)
| Left hand | Operator | Right hand |
|---|---|---|
| DA/CD | + | DA/CD |
| double | + | DA/CD |
| DA/CD | + | double |
| + | DA/CD | |
| DA/CD | - | DA/CD |
| DA/CD | - | double |
| double | - | DA/CD |
| - | DA/CD | |
| DA/CD | * | DA/CD |
| DA/CD | * | double |
| double | * | DA/CD |
| DA/CD | / | DA/CD |
| DA/CD | / | double |
| double | / | DA/CD |
| DA/CD | = | DA/CD |
| DA/CD | = | double |
| DA/CD | += | DA/CD |
| DA/CD | += | double |
| DA/CD | -= | DA/CD |
| DA/CD | -= | double |
| DA/CD | *= | DA/CD |
| DA/CD | *= | double |
| DA/CD | /= | DA/CD |
| DA/CD | /= | double |
Math functions overloaded:
- sqrt
- exp
- log
- sin
- cos
- tan
- asin
- acos
- atan
- sinh
- cosh
- tanh
- pow
- abs
- erf (DA only)
Some test results for efficiency are presented in the following. They are done in a Windows 10 desktop with Intel Xeon (R) E5-1620 processor at 3.60 GHz. Table 1 shows the time cost for composition of one DA/TPS vector of six bases with six DA/TPS vectors. First column shows the order of the vectors, second column the number of terms in each vector, third column the time using the DA data type with revised memory management, and the fourth column the time using the original code. Table 2 shows the time of composition of six DA vectors, each having six bases, with the other group of six DA vectors. The composition in group cost less time if compared with separate compositions.
Table 1. Time (in second) of composition
| Order | No. of terms | DA | TPSA |
|---|---|---|---|
| 2 | 28 | $7.57\times 10^{-6}$ | $6.25\times 10^{-6}$ |
| 4 | 210 | $7.50\times 10^{-4}$ | $1.44\times 10^{-2}$ |
| 6 | 924 | $4.48 \times 10^{-3}$ | $8.39\times 10^{-2}$ |
| 8 | 3003 | $9.90 \times 10^{-1}$ | $2.55$ |
| 10 | 8008 | $15.49$ | $44.60$ |
Table 2. Time (in second) of group composition
| Order | DA |
|---|---|
| 2 | $1.51\times 10^{-5}$ |
| 4 | $1.04\times 10^{-3}$ |
| 6 | $4.42\times 10^{-2}$ |
| 8 | $1.05$ |
| 10 | $16.04$ |
More information on the code is available in this doxygen document.
How to compile and use cppTPSA
You will need a C++ compiler that supports C++ 14 standard. (C++14 is needed to compile examples and tests. C++11 is enough to generate the libs.) There are three ways to use the code as follows:
-
Download the source files. Include “tpsa_extend.h” and “da.h” in your project and compile. Please note: do NOT include tpsa.cpp directly in your compiling command. This file is automatically included in tpsa_extend.cc. Compiling it directly can cause compiling errors.
-
（Deprecated） The code is originally developed using Code::Blocks IDE. There are two C::B profiles under the cbp directory: tpsa_lib.cbp and tpsa_dll.cbp for static library and dynamic library respectively. The cbp files are tested in Windows 10 with gcc compiler. Now we suggest using cmake as explained in the following.
-
You can use cmake to compile the code into both a static library and a dynamic library.
Compile and install cppTPSA in Linux
Assume I have cloned the codes to the following folder:
$HOME/tpsa
Inside the above folder, run:
mkdir build
cd build
cmake ..
The Makefile will be generated.
Then run:
make
Both the static lib and the shared lib of tpsa will be generated. In the subfolder “lib”, you can find the following two files:
libtpsa.a and libtpsa.so
Use the following command to install to the default path:
sudo make install
Both libs will be installed to /usr/local/lib and the header file, da.h, will be installed to /usr/local/include.
To change the installation path, use the following command in cmake configuration:
cmake -DCMAKE_INSTALL_PREFIX=YOURPATH .
The libs will be installed to YOURPATH/lib.
Compile and install cppTPSA in Windows
We suggest using mingw-w64-x86_64-toolchain and cmake to compile and install cppTPSA. One convenient way to set up them is to use MSYS2. First, download and install MSYS2. Then open mingw64.exe in the root folder of MSYS2. In the mingw64 command line, run
pacman -S mingw-w64-x86_64-toolchain
pacman -S mingw-w64-x86_64-cmake
ln -s /mingw64/bin/mingw32-make.exe /mingw64/bin/make.exe
If you installed MSYS2 in C:\msys64, your compiler, make and cmake are installed in C:\msys64\mingw64\bin. Add this directory to the beginning of the environment variable PATH.
To set “MinGW Makefiles” as the default cmake generator, create an environment variable CMAKE_GENERATOR and set the value as MinGW Makefiles. Now you are ready to compile and install the cppTPSA lib.
Go to the root folder of the cppTPSA lib, open the command line terminal, and run:
mkdir build
cd build
cmake ..
The Makefile will be generated.
Then run:
make
Both the static lib and the shared lib of tpsa will be generated. In the subfolder “lib”, you can find the following three files: libtpsa.a, libtpsa.dll and libtpsa.dll.a
Run:
make install
The libs and the header file will be installed to the following directory by default:
-- Installing: C:/msys64/mingw64/lib/libtpsa.dll.a
-- Installing: C:/msys64/mingw64/bin/libtpsa.dll
-- Installing: C:/msys64/mingw64/lib/libtpsa.a
-- Installing: C:/msys64/mingw64/include/da.h
To change the installation path, use the following command in cmake configuration:
cmake -DCMAKE_INSTALL_PREFIX=YOURPATH ..
### How to compile the exmaples and tests
There are two ways to compile the examples. After installing the libs, you can run
```shell
cmake --build . --target build_examples
The executable files will be generated inside the subfolder “examples”.
Alternatively, you can jump into the examples folder and run make command:
cd examples
make
Similarly, to compile the tests, you can run the following command in the root folder
cmake --build . --target build_tests
or jump into the test folder to run
cd ../test
make
To run the executables, make sure the libs can be found by the OS. If the libs are installed in the default director, run
export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/usr/local/lib
The tests depend on Catch2 version 2.3.16 , which is a header only test framework for C++. Make sure you run the tests inside the test folder, otherwise some tests will be failed.
How to compile and install pyTPSA
pyTPSA is the Python wrapper of cppTPSA. It generates a Python 3.x module for TPSA calculations. Source files of the wrapper, together with examples and tests, are in the subfolder “python-wrapper”. Please see HERE on how to compile, install, and use pyTPSA.
Guidelines for Third-Party Contributions, Issue Reporting, and Support
See here.
Acknowledgement
Thanks to Dr. Lingyun Yang for providing his tpsa code.
This work is supported by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics under contract DE-AC05-06OR23177.
Contact
Contact the author by hezhang.AT.jlab.org.
